The Lumentum Class 40 Integrated Coherent Receiver provides superior performance in detection of coherent modulated signals. It has a built-in variable optical attenuator on the signal path and a built-in polarizaiton splitter for the LO signal. The 90 degree-hybrid mixes the LO with the signal and the four High speed Transimpedance amplifiers detect the quadrature phase of the signal in both polarizations.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
The Lumentum High-Bandwidth Coherent Driver Modulator (HB-CDM) is a cutting-edge product for high-end communications networks, providing the functionality of a high performance coherent modulation in a small form-factor (OIF standard). It takes a polarized input (PMF fiber, light injected on fast axis) and splits the light over two polarization paths and adds phase modulated coding, typically DP-QPSK or QAM. It then combines the light into one fiber (SMF) for transmission over long distance networks.
The product works well with the LumentumIntegrated Coherent Receiver.

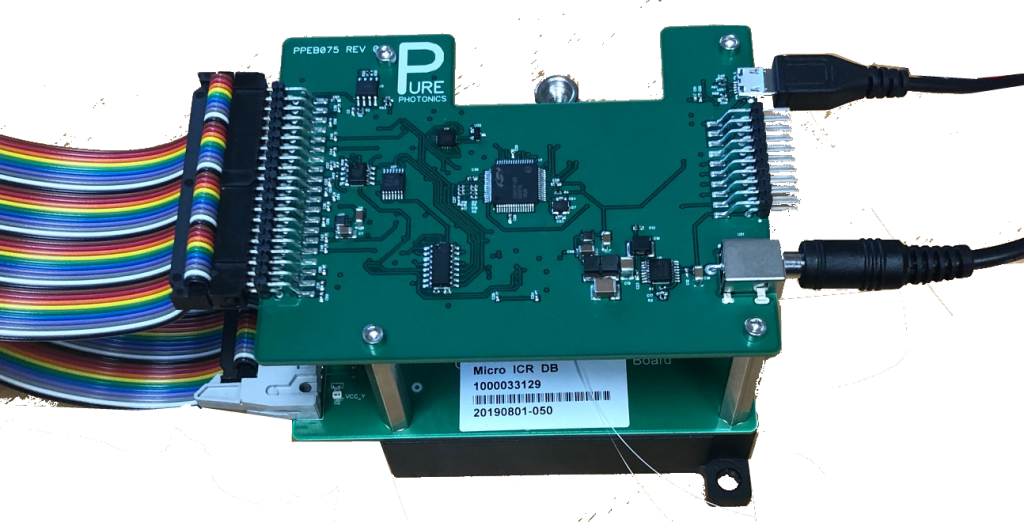

Control ICR products with our PPEB076. All low-speed device functionality can be controlled through this control board, including amplifier supply current, photo-diode bias and read-out, gain and output adjust control and analog peak voltage readings.
The device comes with a wall-plug power supply and can be controlled through the USB interface with our GUI or it can be commanded through a serial port from a script.

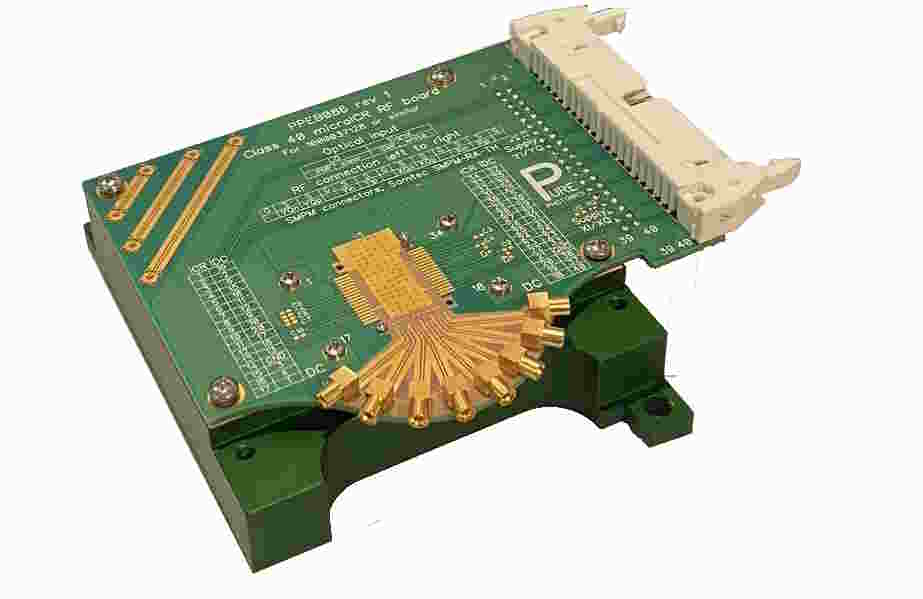

The Datasheet PPEB086 provides a mounting board for the micro-ICR with high-speed RF traces to SMPM connectors. The DC leads are routed to a 40 pin connector that matches the pinout of the PPEB076 control board.
The product is compatible with the preceding Lumentum evaluation mother board.

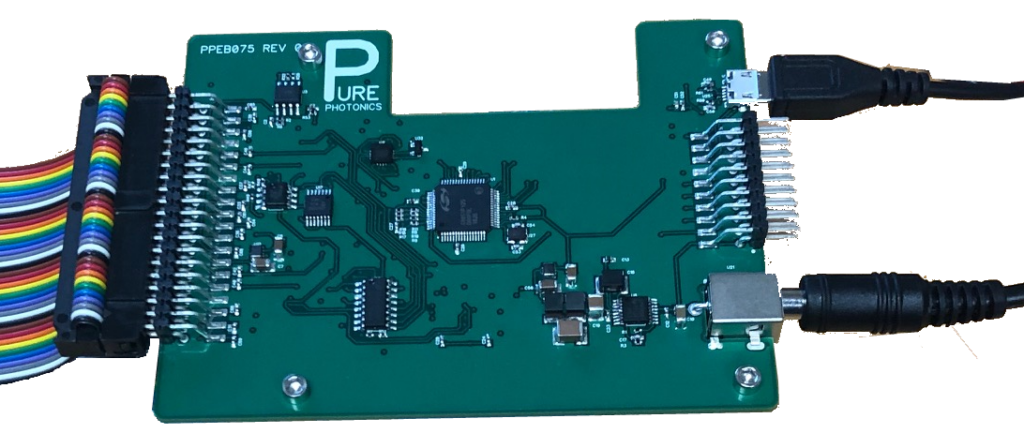

ICR control board. Provides power supplies and control signals for the micro-ICR (comparable to the motherboard). Has RS-232 (LVTTL) and micro-USB interface to allow control through programming script.

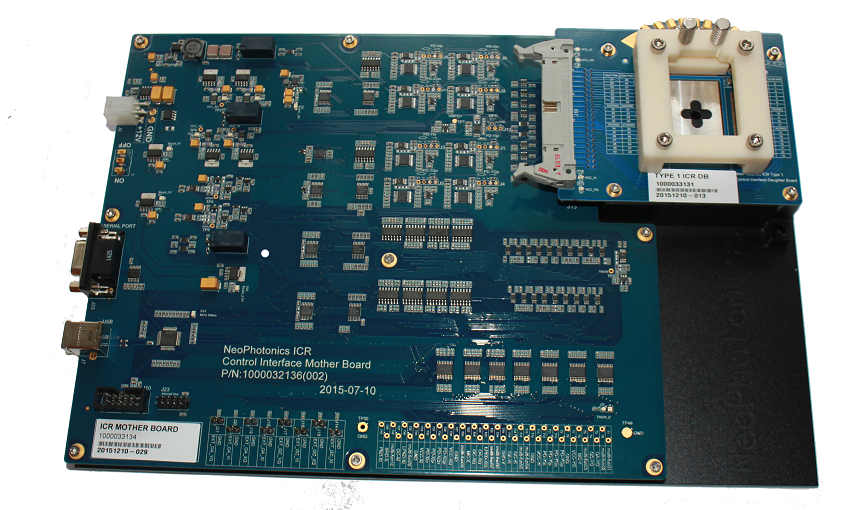

Evaluation Mother Board for Integrated Coherent Receiver. Provides power supplies and control electronics to control all DC-pins of an Integrated Coherent Receiver. Form-factor agnostic. Data-rate agnostic.
Comes with GUI control software for convenient adjustment of settings and monitoring of performance.
LEGACY – LIMITED REMAINING INVENTORY

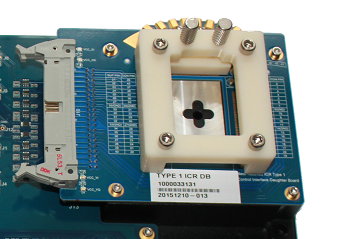

Evaluation Daughter board for micro-ICR. Form-factor and data-rate specific.
Class 40 board works with class 40 micro-ICR (with VOA).
LEGACY – REPLACED BY PPEB086
