Tunable Laser Accessories

The Pure Photonics tunable laser product is often sold as a stand-alone solution, with all components for proper integration included. However, sometimes some customization is required and here we offer some helpful tools to make that easier.

These components can be ordered on our website. Use the ‘Buy now’ button to go to your shopping cart and to check-out. If you want to add multiple items, please use the ‘Add to Cart’ button.

Oure shopping cart and payment terminal is managed by Paypal, providing you a secure and convenient shopping experience. Note that Paypal will ask you to log into a Paypal account, but also offers the option to directly pay by credit-card.

If you are looking for larger quantities or have suggestions on other items to add here, please contact us at [email protected] .

Evaluation Board

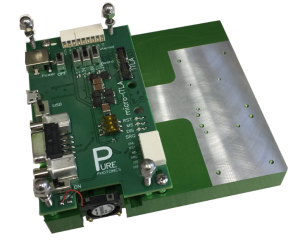

PPEB700 Evaluation board

Evaluation board for PPCL600, PPCL700 (and other ITLA-style) tunable lasers. Includes a mechanical interface, built-in voltage supplies (+3.3V, -5.2V, +1.8V) and both PC-level RS232 and micro-USB communications port.

With wire-terminals to access standard ports, such as SRQ, DIS, RST and custom ports, such as AM, FM, CM1.

Price $850

Plug-on Boards

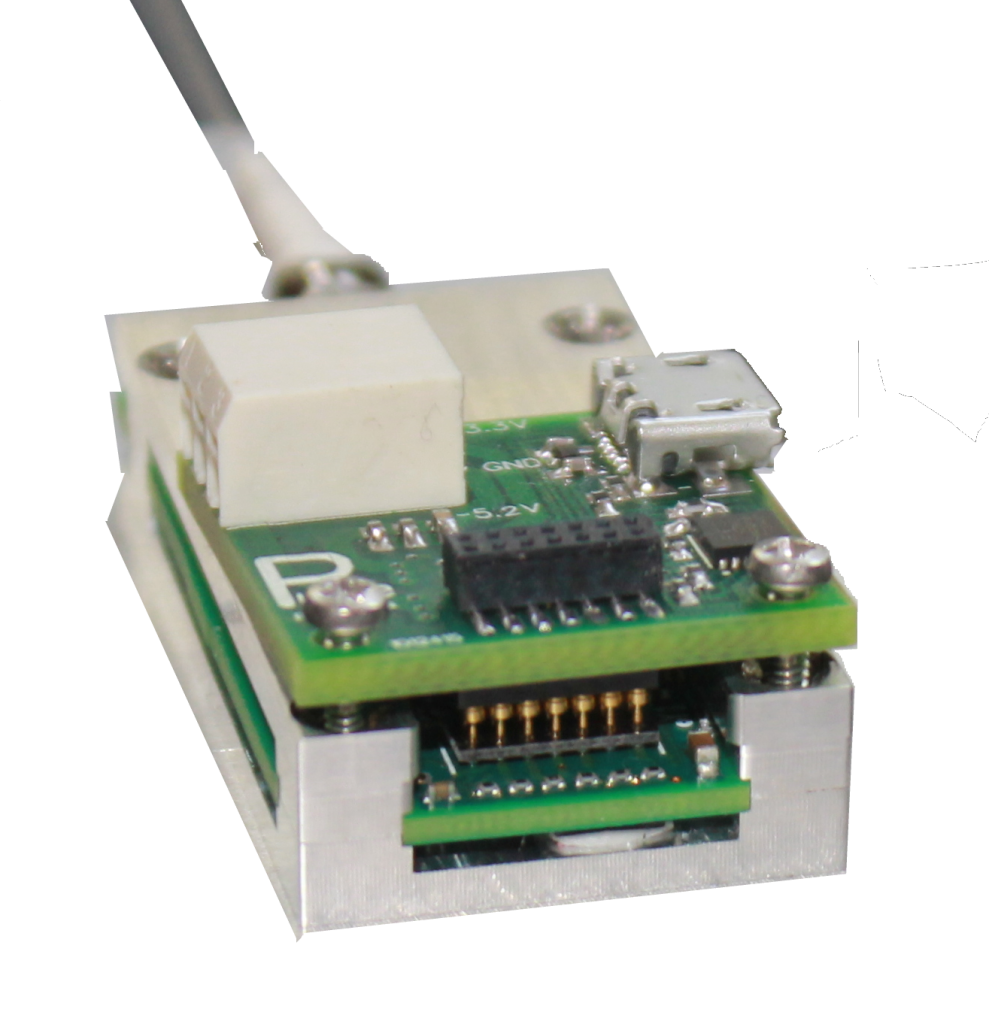

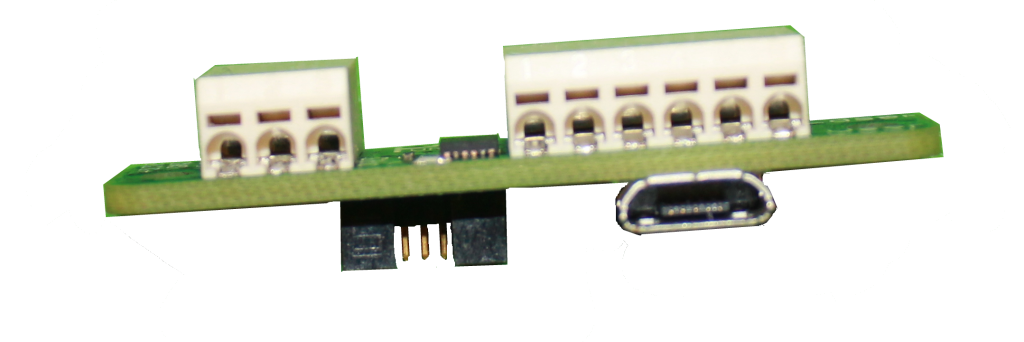

PPEB600 Plug-on board

Solution for PPCL600 products

Provides a convenient wire terminal for the +3.3V and -5.2V power supply and converts the LVTTL communications to a micro-USB terminal (installs as a serial port on Windows PCs).

Price $250

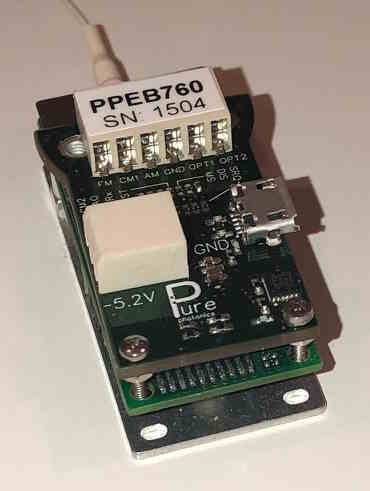

PPEB760 Plug-on board

Solution for PPCL700 products

Provides a convenient wire terminal for the +3.3V and -5.2V power supply and converts the LVTTL communications to a micro-USB terminal (installs as a serial port on Windows PCs).

Also provides access to the additional pins on the PPCL700 through a wire terminal and configurable (soldering required) distribution network.

Price $250

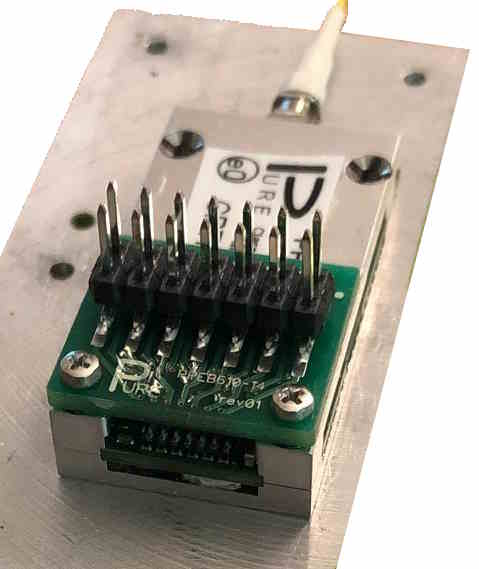

PPEB610-14

Conversion board for PPCL600.

Converts AIC connector to more convenient IDC connector (female AIC to male IDC).

Price $30

PPEB710-14

Conversion board for PPCL700.

Converts Samtec connector to more convenient IDC connector (female Samtec to male IDC).

Note that this plug-on board only supports 14 pins. Pins 15-20  (Analog in and outputs) are not accessible with this solution.

Price $30

Flex cables

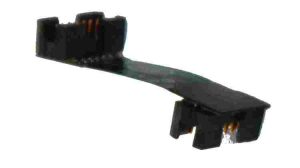

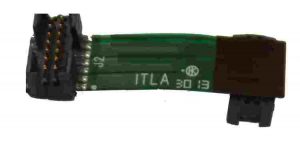

Short Flex-cable PPEB230-14

26mm x 10.5mm long flex cable with 14 pin connector on both sides. Several connector options available.

Price: $30

Connector options

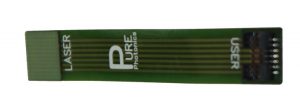

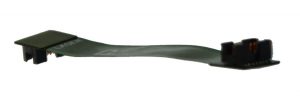

Long Flex-cable PPEB220-14

64mm x 10.5mm long flex cable with 14 pin connector on both sides. Several connector options available.

Price: $30

Connector options

Long Flex-cable PPEB240-14

64mm x 10.5mm long flex cable with 14 pin connector on opposite sides. Several connector options available.

Price: $30

Connector options

Long Flex-cable PPEB320-20

64mm x 10.5mm long flex cable with 20 pin connector on same side. Several connector options available.

Price: $30

Connector options

Extra Long Flex-cable PPEB320-20

125mm x 10.5mm long flex cable with 20 pin connector on same side. Several connector options available.

Price: $45


Connector options

Mechanical interface

Mechanical mounting board

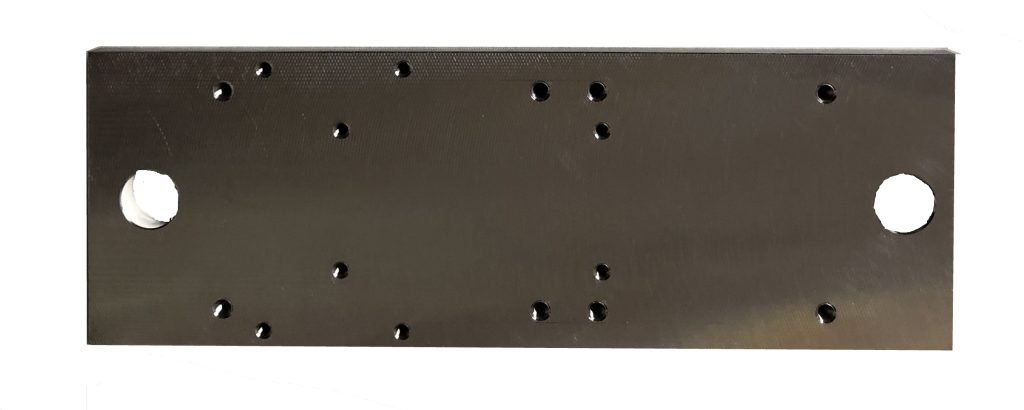

PPEB250 Mechanical Interface

Machined Aluminum plate with mounting holes for the ITLA. Provides sufficient heatsinking, when placed in direct air-flow or when mounted on a larger metal heatsink. Combine this with PPEB400, as an alternative to a full evaluation board solution.

Price: $60

Legacy Products

ITLA plug on board PPEB280

Micro-USB interface PPEB280

Suitable for PPCL100 and PPCL200

Price: $250

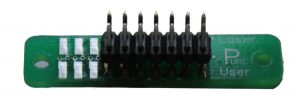

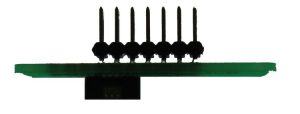

14 pin Conversion to IDC PPEB210-14

Conversion board from PPCL200 14 pin connector (female on PPCL200) to 14 pin male IDC connector

Product comes with installation material for PPCL200 (14mm long screws and 2 stand-offs)

Price: $35

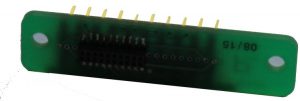

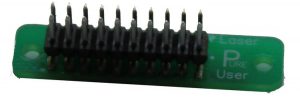

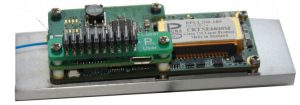

20 pin Conversion to IDC PPEB310-20

Conversion board from PPCL300 20 pin connector (male on PPCL300) to 20 pin male IDC connector

Product comes with installation material for PPCL300 (20mm long screws and 2 stand-offs)

Price: $35
