Network Components

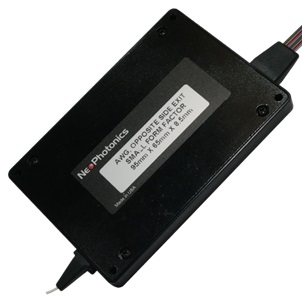

Athermal Wide-band AWG

Arrayed Waveguide Gratings are fully passive multiplexers/demultiplexers Arrayed Waveguide Grating for use in wideband DWDM networks. Multiplexes/demultiplexes up to 48 channels onto 1 output fiber.

  • Athermal from -5 to 60C
  • 191.2-196.1 THz
  • C-band 100GHz, 50GHz and 75GHz spaced
  • Up to 48 channels
    • 4 input ribbons
    • LC/PC connectors
  • Less than 5dB loss

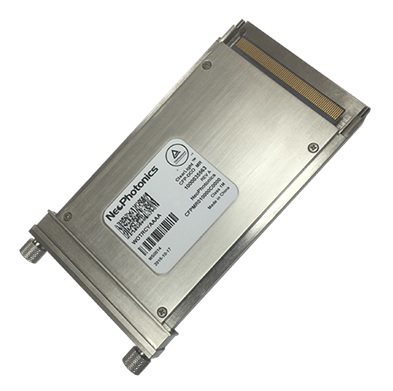

Coherent CFP

Coherent 100G CFP Transceivers are widely used in communications networks for long distance coherent transmission.

The 100G CFP is an advanced communications module in CFP form-factor, including the full transmit and receive chain, as well as an integrated DSP. The module has 10x10G electrical input and output channels and advanced digital controls. The combined 100G data is carried on one optical carrier.
To facilitate easy control and access in the lab we (optionally) provide this product with evaluation board.

  • 100GBps DP-QPSK
  • Hot pluggable
  • MSA compliant
  • ZR and MR configuration
  • C-band
  • LC-duplex
  • With NEL DSP
  • RoHS compliant
